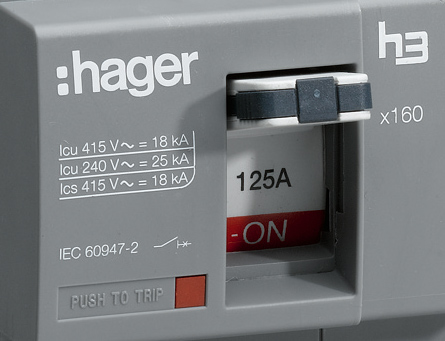

h3 MCCBs

The h3 range of MCCBs provides safe and easy solutions for low voltage electrical circuit protection.

Benefits

With special attention being given to ergonomics, the h3 range of MCCBs has many advantages:

- Ease of installation
- Simple set up for maximum installation efficiency
- Quick, easy and safe mounting of accessories
- Wide range of rated current ratings and breaking capacities
- Range of termination accessories
- DIN rail profile up to 250A
- Calibrated at 50C
click to enlarge
click to enlarge
click to enlarge
click to enlarge

Technical Data

LSI (electronic)- 6 frame sizes: x160, x250, h250, h400 - h630, h800-h1000, h1250- h1600
- Breaking capacity: 18, 25, 40, 50, 65, 70kA
- TM trip unit: 25 to 400A
- LSI trip unit: 250 to 1600A
- Comply with IEC 60947-2
- 1 pole to 4 poles
- Current limiting type
- International certification and approvals



click to enlarge
click to enlarge
click to enlarge
click to enlarge
